EPCI of Mila-A & Asti-A Platforms and Offshore Pipelines

COMPANY plans to develop Mila-A and Asti-A gas fields to supplement production to BWA which is the existing primary gas production in the central area.

• Mila-A Gas Field is about 7.2 km away from BWA
• Asti-A Gas Field is about 6.6 km away from BWA

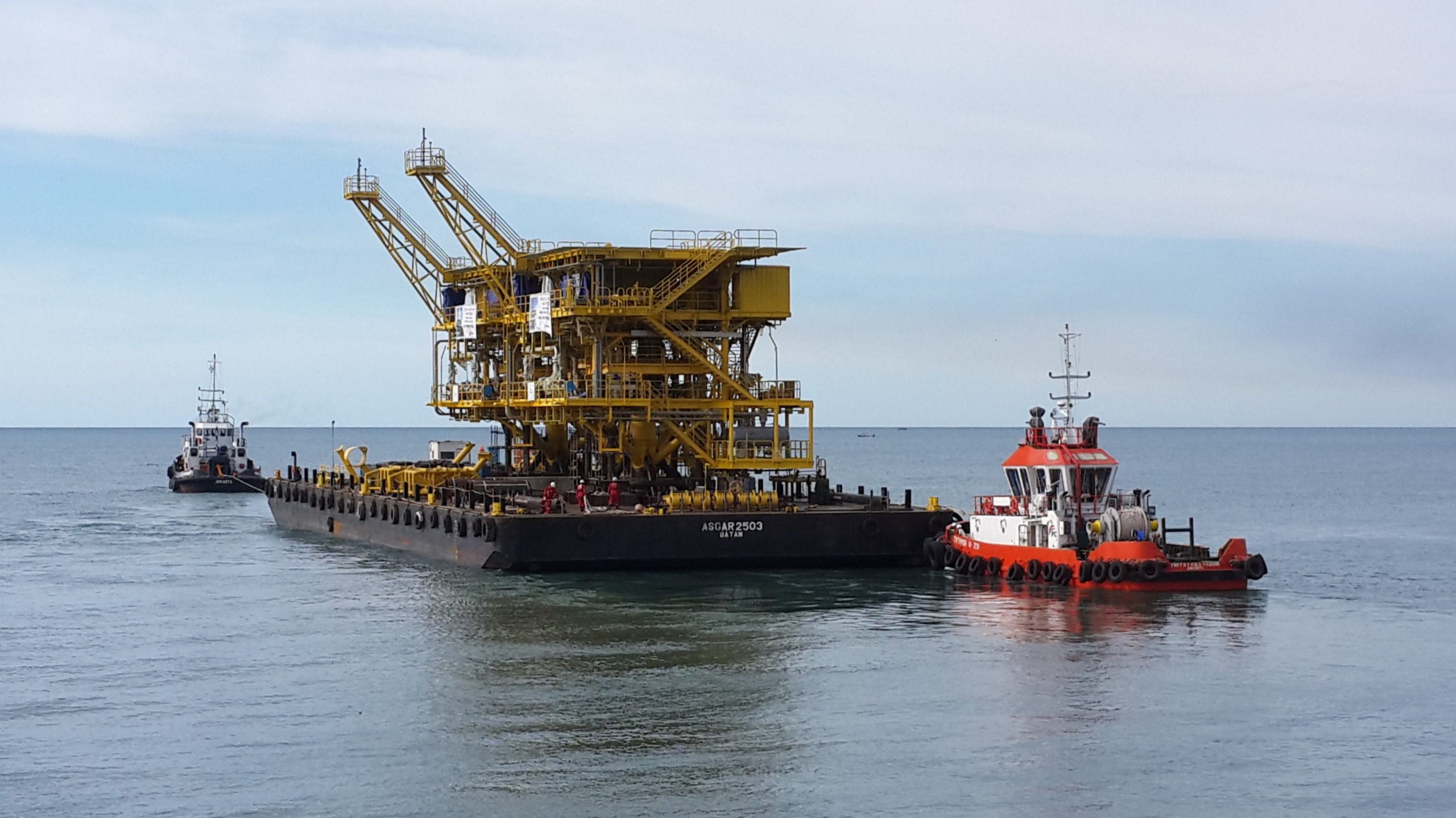

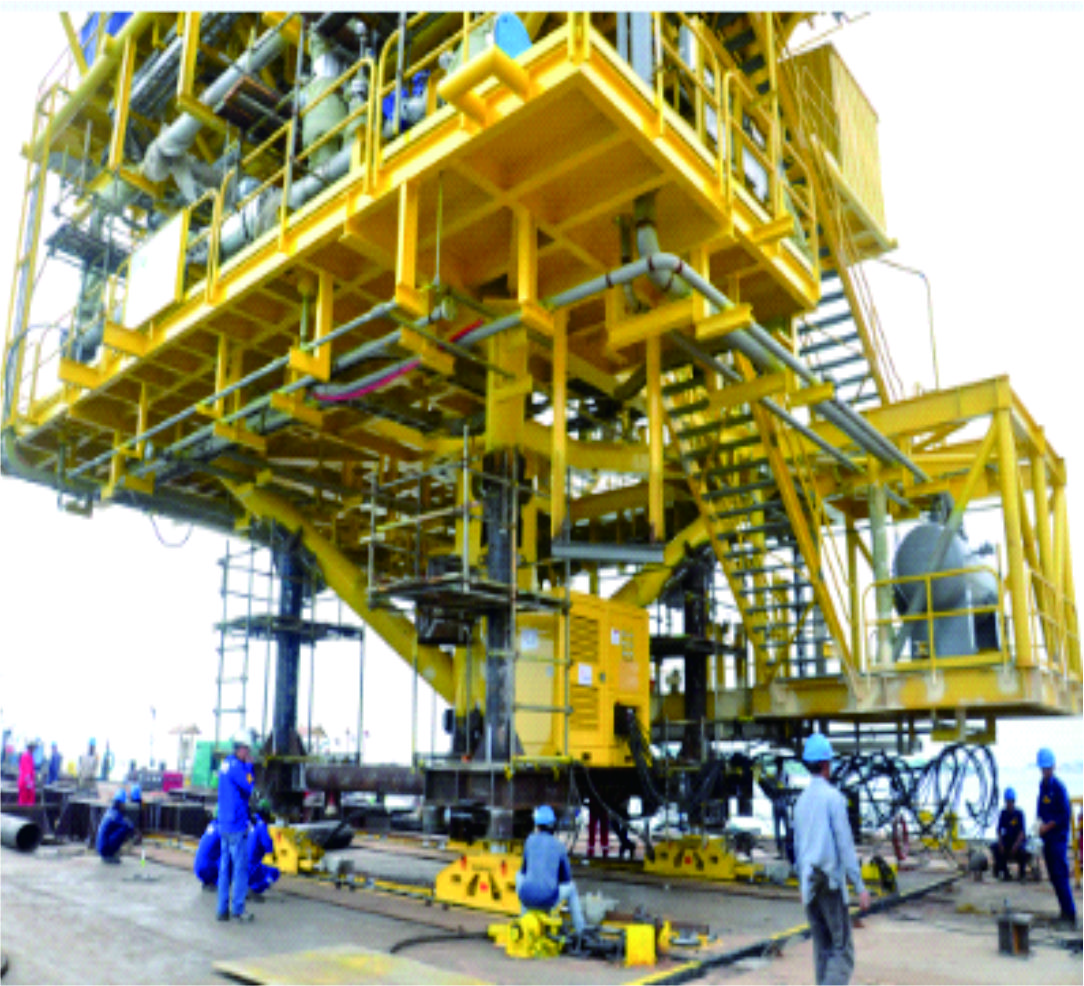

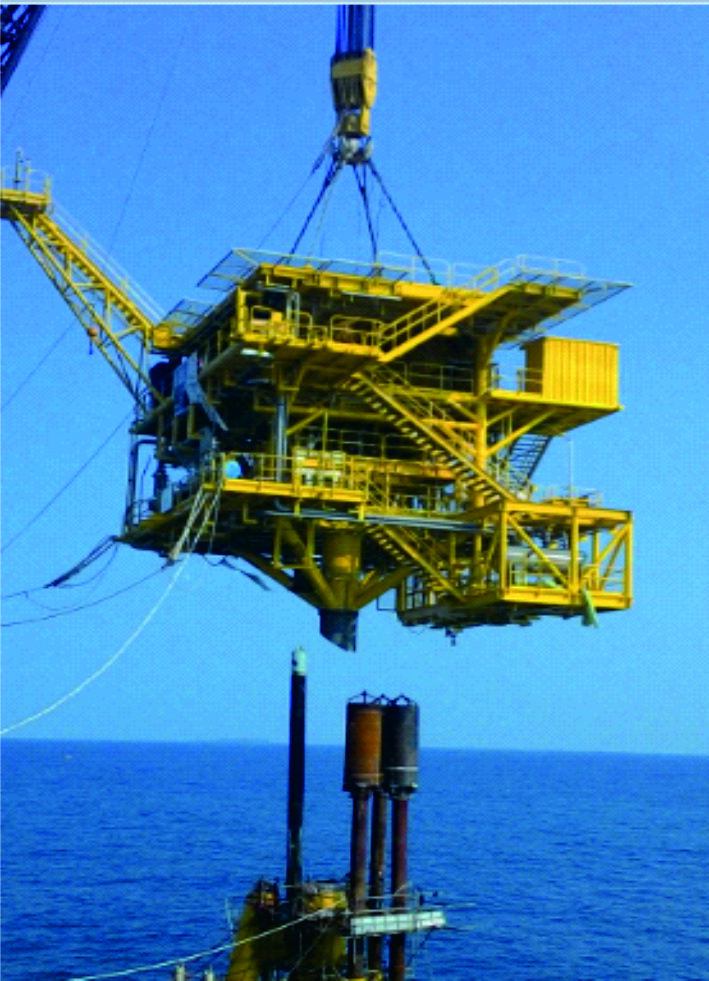

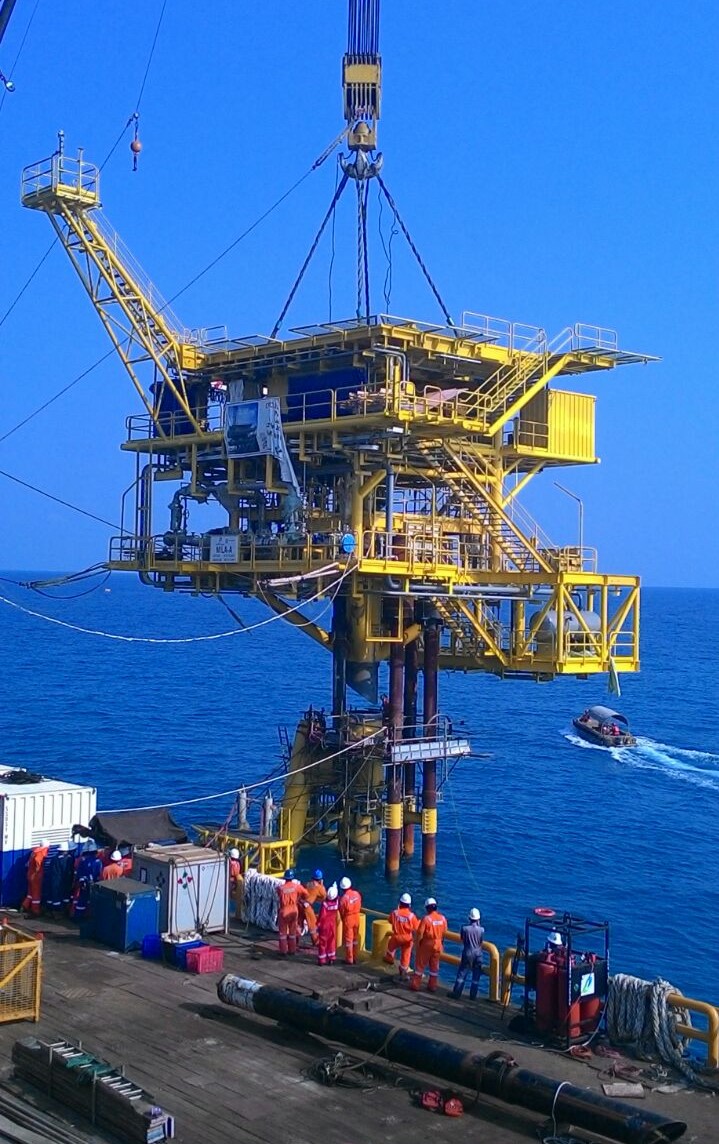

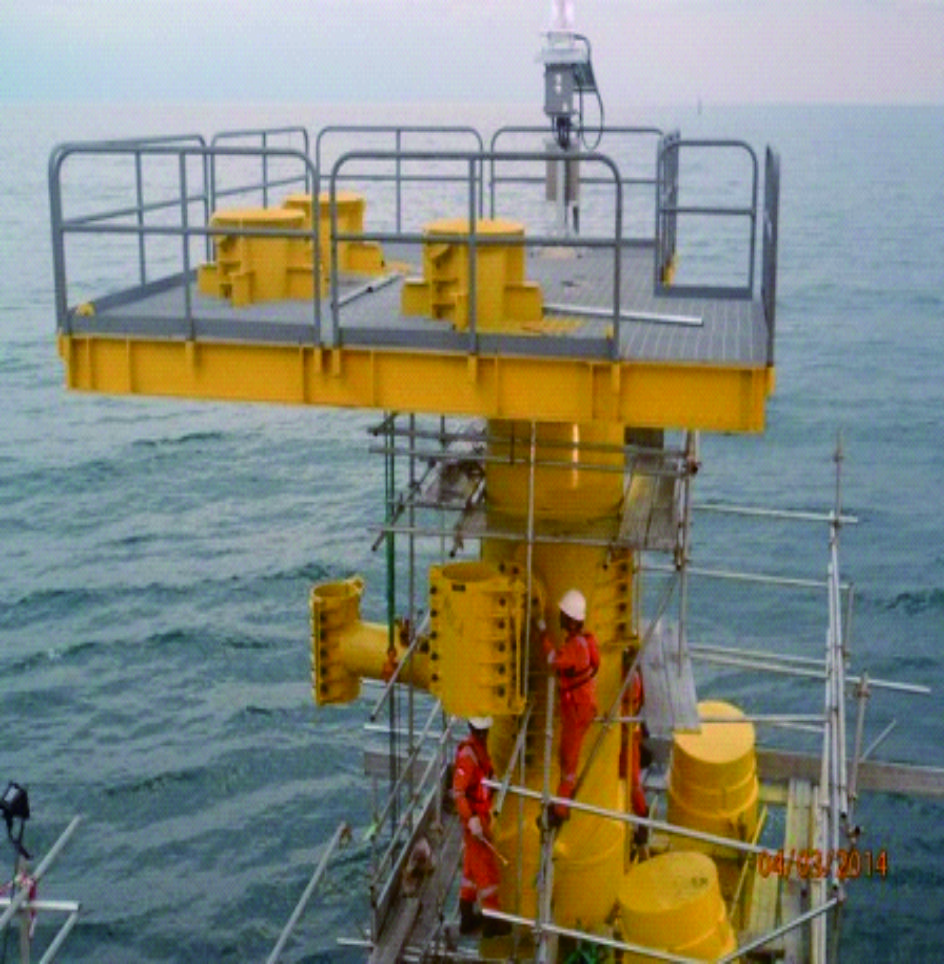

New Braced Monopod Well Head Platforms are to be developed for both Mila-A and Asti-A including subsea pipelines to deliver Mila-A and Asti-A production to the BWA platform.

• Platform type   : Braced Monopod
• Topside Weight  : +/- 500 MT
• Water Depth  : +/- 70 ft
• Conductor  : 3 (Mila-A) & 2 (Asti-A)

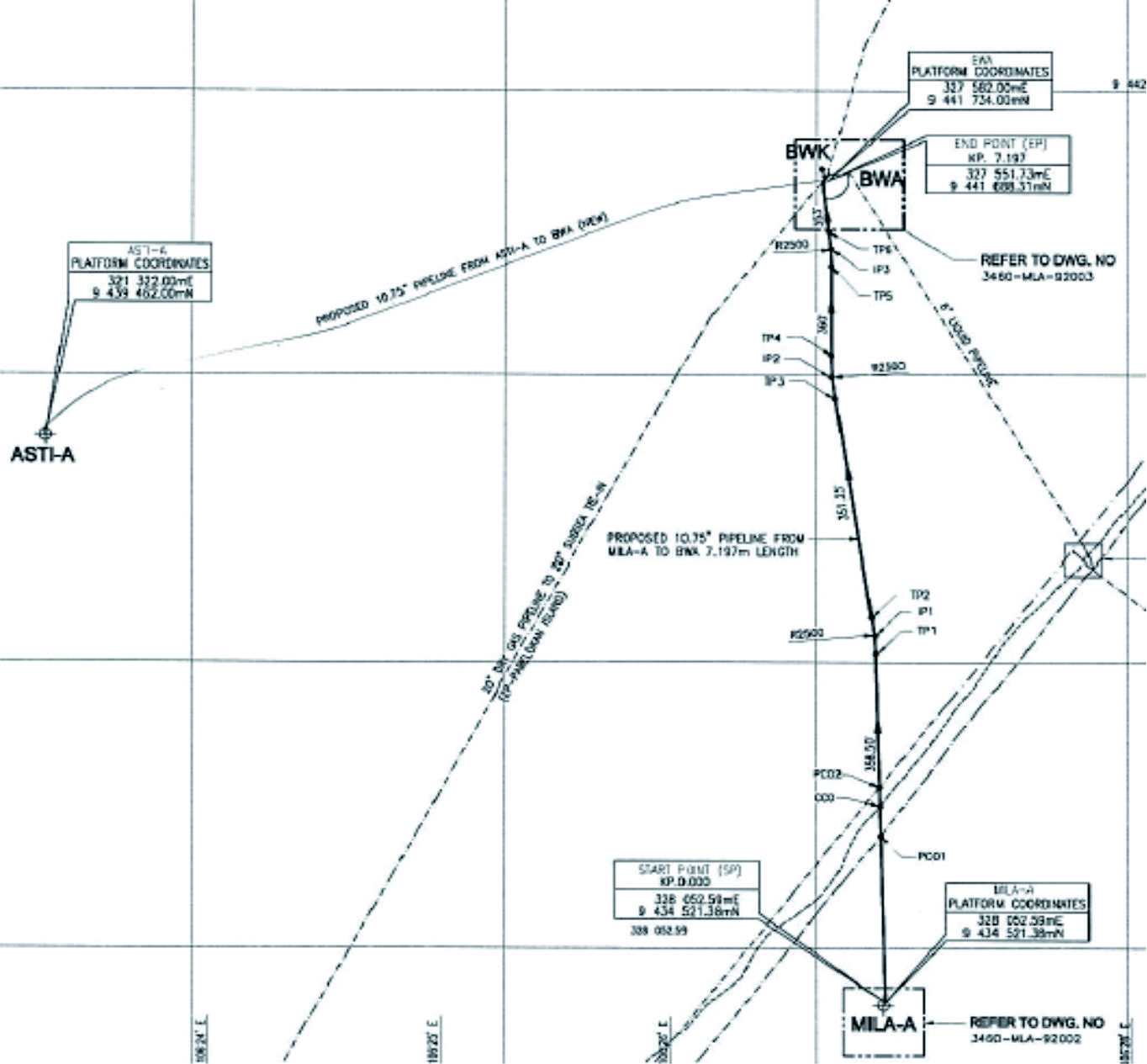

• Pipeline Mila – BWA  : 10” OD,  +/7.5 Km
• Pipeline Asti – BWA  : 10” OD, +/- 7 Km

Contractor Scope of Work:

• Mila-A Braced Monopod Well Head Platform
• Asti-A Braced Monopod Well Head Platform
• 10-inch gas export carbon steel pipeline including risers from MILA-A Platform to BWA Platform
• 10-inch gas export carbon steel pipeline including risers from Asti-A Platform to BWA Platform
• BWA Platform modification
